10.0mm round male and female magnetic pogo pin connector for smart hush buckle.
UPE professional design and manufacture magnetic connector, magnetic cable connector for customer.
You just need provide us your ID and description your products application with your requirements to us, then our engineer will give you suggestion and we also can help you to finish your products design, or UPE design it for you if you needed.
Male Magnetic Connector Part
...Material:
Plunger:Lead-free C6801 ,plating 5U" Min Au over 60~100U"Ni;
Barrel:Lead-free C6801 ,plating 5U"Min Au over 60~100U"Ni;
Spring:SUS 304 plating 1U"Au;
Housing: White LCP+30%GF UL94 V-0;
Shell: Lead-free C6801 Plating Ni;
Magnet: NdFeB N52 Plating Ni
...Mechanical:
Spring force:70g±20g,at 1.0mm working stroke.
Full storke:1.2mm.
Mechanical life:50000 cycle Min.
...Electrical:
Voltage:12.0 V.
Current:3.0 A.
Contact resistance:50mΩMax (PIN).
100% open and short test.
...ROHS or REACH compliant product.
...Salt spray test:48H.
..& Key inspection dimension .
… Product application description (not limited to the following):
1.Plug-in welding PCB board;
2.Forming and encapsulating after welding wires;
3.A transfer terminal of that PCB board can be adde;
4.Mlding injection molding of embeddable mould;
5.Wires can be bonded directly.
Female Magnetic Connector Part
...Materials :
PIN:Lead-free C6801 ,plating 5U"Min Au over 60~100U"Ni;
Housing: White LCP+30%GF UL94 V-0;
Shell: Lead-freeC6801 Plating Ni;
Magnet: NdFeB N52 Plating Ni
....Electrical:
Voltage:12.0 V.
Current:3.0 A.
Contact resistance:50mΩMax (PIN).
100% open and short test.
...ROHS or REACH compliant product.
...Salt spray test:48H.
...& Key inspection dimension .
… Product application description (not limited to the following):
1.Plug-in welding PCB board;
2.Forming and encapsulating after welding wires;
3.A transfer terminal of that PCB board can be adde;
4.Mlding injection molding of embeddable mould;
5.Wires can be bonded directly.
DC Magnetic Connectors Parameter:
| Name | Circular Magnetic Connector |
| Type | Male/Female |
| Pin | 2pin |
| Diameter | 10.0mm |
| Color | White |
| Pogo pin | Brass C6801 Plating Au 0.125um |
| Turning Parts | Brass C6801 Plating Ni |
| Housing | White LCP+30%GF UL94 V-0; |
| Spring force | 70g±20g,at 1.0mm working storke. |
| Full storke | 1.2mm |
| Mechanical life | 50000 cycle Min.. |
| Current | 3.0A Max |
| Voltage | DC 12V |
| Contact resistance | 50mΩ Max (PIN). |
| Operation Temperature | -25℃to +80℃ |
| Salt spray test | 24H |
| Certification | ROHS or REACH compliant product |
| Test | 100% open and short test |

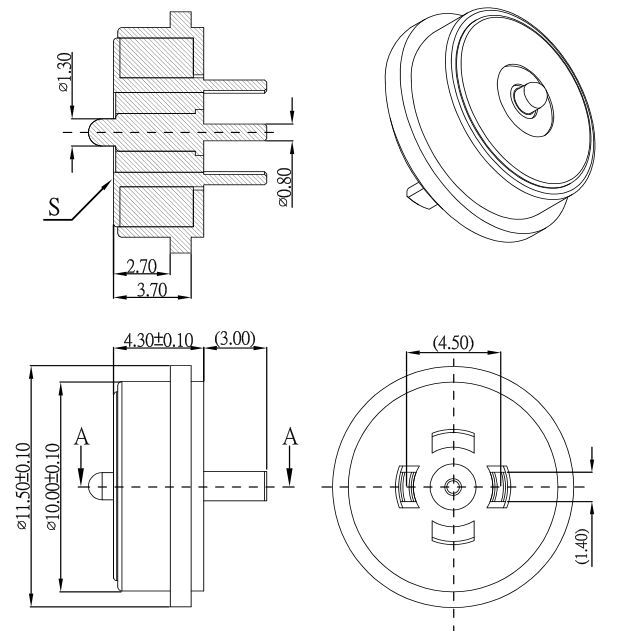

Circular Male Magnetic Connector Technical Drawing
Circular Female Magnetic Connector Technical Drawing
PCB Layout:
Advantages of Magnetic Connector:
●Humanize design of automatic adsorption connection experience;
●Humanized anti-fall: it is easy to remove from the charging interface, and it is not easy to remove the device;
●Life time: up to 100,000-200,000cycle;
●Waterproof design: the female end of the device can be dustproof and waterproof (IPX8);
●Fast charging time: 5A-10A magnet connector design withstands large current transmission;
●The appearance of the magnetic connector can be matched according to the design of the customer's application device;
●Product anti-short circuit structure design and foolproof;
●Realize high frequency signal transmission,can replace the traditional USB2.0 HDMI 1.3 function Video&Audio signal transmission
●Space-saving female connectors and PCB adapters can achieve pogo type and SMT DIP patch cord connections
●The excellent corrosion resistance grade (48H-120H) meets the requirements for use in harsh environments
●Excellent expandable interfaces, which can implement (Power Signal, Video Audio, Jack, Etc.)
●The development time is short, the mold-making cost is low, and it is suitable for customization
Magnetic connector products application:
1.Aerospace, medical devices, automotive on-board electronics, small household appliances, automated industrial equipment, data communication equipment, industrial inspection equipment, wireless devices, track-moving intelligent vehicles
2: Virtual reality devices (VR), unmanned aerial vehicle devices, intelligent robot devices
3: Smart wearable products, smart positioning products (children's smartwatches, smart bracelets, wearable mobile phones, Bluetooth headphones, etc.)
4: Smart home devices, smart handheld terminal devices, smart sanitation equipment, smart outdoor sports equipment, smart physiotherapy and beauty devices
5: Consumer electronics, small household appliances (printers, smart phones, computers, cameras, audio-visual equipment, PDA)
Why UPE shall be your partner?
1.R & D team independent design and development capabilities, can be customized with product development; you just have an ID, we will do the left for you,free development,R&D time 3-5 working days.
2.Product projects of multi-program selection, round, square, rectangular, shaped connection with the flexible use of the way to achieve beautiful appearance, saving space, easy plug, magnetic force can achieve 1N to 30N.
3.Connection way:magnet to magnet,magnet to alloy,magnet to Iron sheets and so on,to meet different structure and application, avoid magnetic field interference, use NdFeB magnet, it’s can keep the magnetic force forever.
